| Screen making method |
High-speed digital screen making |
| Screen frame size |
Min. 590mm x 310mm (23.23″ × 12.20″)(with a frame thickness of 30 mm) |
| (Outer dimensions) |
Max. 635mm x 914mm (25.00″ x 36.00″) |
| (width x length) |
|
| Screen frame thickness |
20 mm to 45 mm (0.79″ to 1.77″) |
| Image area size (width x length) |
Min. 10mm x 10mm (0.39″ × 0.39″) |
| Max. 457mm x 759mm (17.99″ x 29.88″) (with a frame thickness of 20 mm) |
| 455mm x 734mm (17.91″ x 28.90″) (with a frame thickness of 45 mm(1.77″)) |
| Screen making time |
Approx. 200 sec (A2 (420 mm x 594 mm (16.54″ x 23.39″)) image area size) |
| Resolution |
600 dpi x 1,200 dpi (perforation density: 1,200 dpi) |
| Memory capacity |
128MB |
| Supported OS |
Microsoft Windows® 10(32-bit/64-bit), Windows® 8.1(32-bit/64-bit), Windows® 7(32-bit/64-bit) |
| OS X10.9 (64-bit)/10.10(64-bit)/10.11(64-bit), macOS 10.12(64-bit) |
| Network interface |
USB2.0 |
| Power source |
AC100-240V, 50-60Hz, 3.6-1.4A |
| Power consumption |
Maximum: 300 W |
| When standing by: 50 W or lower |
| Operating environment |
Temperature: 15℃ to 30℃/ 59F to 86F |
| Dimensions (W x D x H) |
During use: 1,215 mm x 800 mm x 410 mm (47.83″ x 31.50″ x 16.14″) |

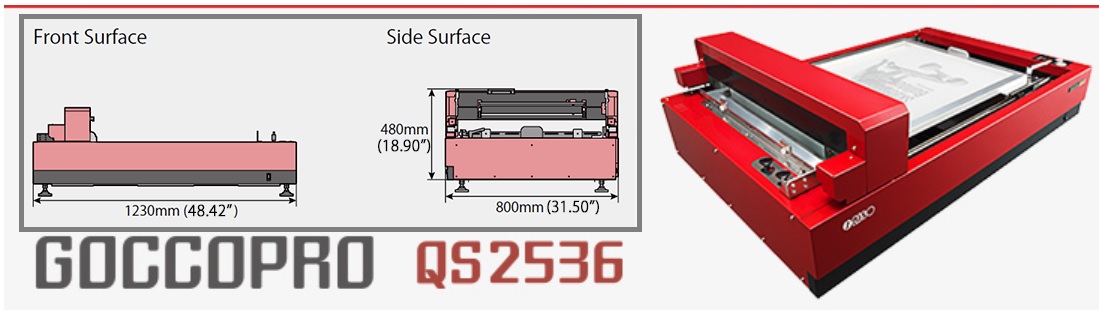

| Required space (W x D x H) |
1,230 mm x 800 mm x 480 mm (48.43″ x 31.50″ x 18.90″) |
| Weight |
Approx. 70 kg (154 lb.) |
